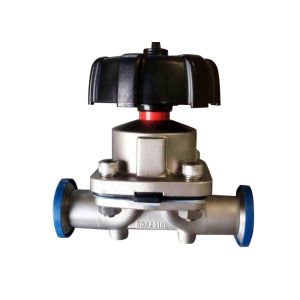

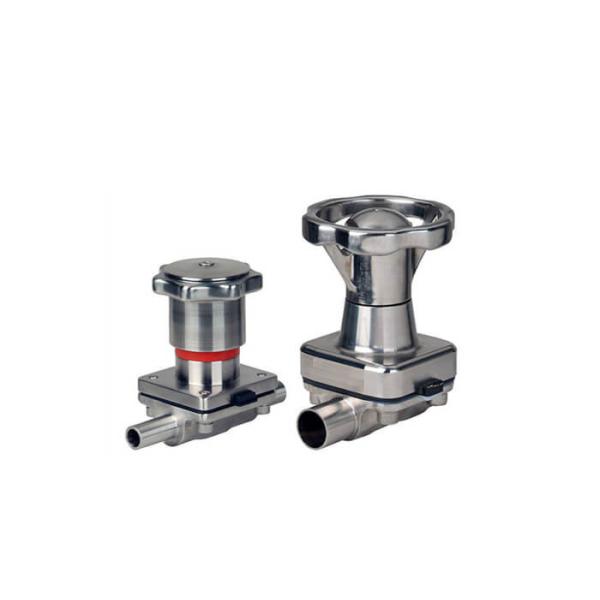

Three Way Manual Diaphragm Valve TP316L Stainless Steel Material For Beverage

Descriptions:

This sanitary diaphragm valve made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with an envelope diaphragm PTFE filled with EPDM or VITON upon request, clamp ends. It has a maximum operating pressure rating 140 (psi depending on the valve size) at 70 degrees F ambient temperature. It is suitable for use in the food, beverage, biotech, pharmaceutical, and other hygienic applications. When purchasing fittings, consider the application, as this will affect material type, shape, size, pressure drop and required durability.

Features:

Valve body:SS316L, Body is made from investment casting ASTM 351.Forged body can be supplied on request.

Size :3/4″ to 4″ DN15-DN100

Also available in Mini type: DN6, DN8, DN10,

Membrane:PTFE+EPDM,SILICONE,EPDM.FDA certificated

Operation: Manual Type,Pneumatic actuated

Connections: Clamped,Butt-weld,female,male

Working temp: EPDM(-40 ℃ ~120 ℃) PTFE(-25 ℃~180℃)

Working pressure: Max 10 Bar

Surface: internal mirror polished Ra<0.4μm External-Sand Blasted

HYHAU supply other ranges of hygienic diaphragm valves,such as three way diaphragm valve,U type diaphragm valve, T type diaphragm valve,pneumatic diaphragm valves,two way clamped diaphragm valve.

Sizes Range:

Quality Assurance:

1. Material Controlled & Machined Precisely.
2. Easily welded
3. Quickly fit up
4. High corrosion resistant
5. Long service life
6. Safety Stock System.
7. Well packaged
8. Fast delivered
9. Surface Finish: #180 Grit, #320 Grit

Applications:

HYHAU's stainless steel sanitary valves are applicable to a wide range of manufacturing industries:

1. Bio-Pharm

2. Food

3. Beverage

4. Dairy

Kunshan Nyhau Fluid Equipment Co.,Ltd is mainly engaged in the manufacture of stainless steel sanitary valves, fittings and pumps. A team with years of experience in product development, design, production management and quality control.

NYHAU manufactures various types of automatic control valves, diaphragm valves, butterfly valves, check valves, unions, threaded joints, elbows, tees and sanitary fitting valves, vacuum fittings, BPE fittings (SF1/SF4) etc.

NYHAU has advanced imported finishing equipment to provide high quality and clean pipeline fittings for the food, brewing, beverage, biotechnology, pharmaceutical, fine chemical, electronics, and cosmetics industries.

NYHAU has won high recognition from domestic and foreign customers with its internationally advanced technology and technology, complete product range and fast and accurate coordination capabilities.

NYHAU has many years of cooperation with OEM/ODM global group customers and first-line brand customers, and is still in continuous cooperation.
