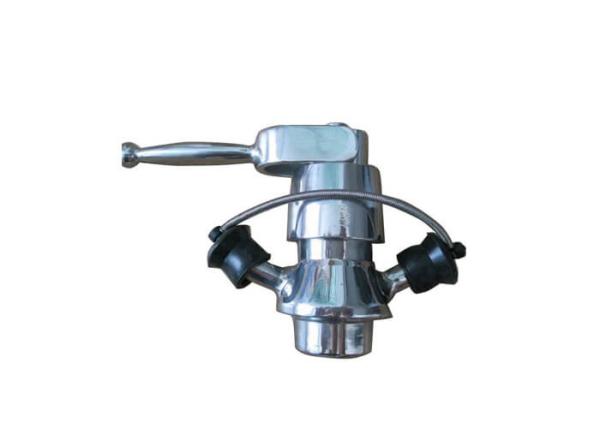

Unique Design Sanitary Sample Valves Pneumatic Type For Aseptic
Sampling System
Application
HYHAU series is a stainless steel aseptic sampling valve with
pneumatic actuator; it is wildly used in the food, dairy, brewery,
winery and many other hygienic industries.
Materials
Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for valve with
micro type connector)
Design:
- Sanitary sampling valve consists of three parts – a valve body, a valve head and a
membrane. The rubber membrane is placed on the stem of the valve
head and works as a stretchable plug.
- The membrane functions are both – as a dynamic packing in the valve
seat and as a hygienic, static packing against the valve body.
- The unique design eliminates dead spaces and preventing microbial
and particulate build-up -which may interfere with microbiological
test results.
- Perfect hygienic design and surface finish of the inner part of sanitary sampling valve enables absolute sterilization in a closed state.
- Sterilization and sampling can be carried out regularly without
interrupting the production process.
- Easily attached to a liquid distribution line or a storage tank.
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the
diaphragm. The diaphragm should be replaced after 100 times
samplings or sterilizations.
Sample Valves and Equipment,offers a wide array of sanitary sample
valves for many applications including beverage, semiconductor and
biopharmaceutical water systems. Our stainless steel sampling
valves allow the user to easily extract a sanitary sample of a
liquid for analysis.
Sanitary Solutions is your source for a T304 Sanitary Sample Valve
primarily found in the Beverage, Brewery, Pharmaceutical, Tank and
Winery Industries. Our TP304 Sanitary Sample Valve is clamp end
with either a 3/8" or 1/2" spout depending on the size needed. As
for the surface finish of the valve, our valve is polished to meet
sanitary standards.
Sanitary sample valve is a type of valve used in process industries
that allows taking a representative portion of a fluid (gases,
liquids, fluidized, solids, or slurries) to test (e.g. by physical
measurements, chemical analysis, microbiological examination),
typically for the purposes of identification, quality control, or
regulatory assessment. It is a valve used for sampling.
Sanitary Solutions is your source for a T304 Sanitary Sample Valve
primarily found in the Beverage, Brewery, Pharmaceutical, Tank and
Winery Industries. Our TP304 Sanitary Sample Valve is clamp end
with either a 3/8" or 1/2" spout depending on the size needed. As
for the surface finish of the valve, our valve is polished to meet
sanitary standards.
Strength:
- Material of stainless steel 316L and 1.4404 is from reputed mill to
guarantee the chemical composition and mechanical properties.
Material certificate will be submitted follow to orders.
- Forged valve body and disc to control the leakage and visual.
- Superior facilities and good experiences for fabrication.
- In ability to improve and develop new design.
- Fast delivery is possible to meet your needs well in time.
- Low cost from bulk production will reduce your budget and improve
your business.
- Small quantity available.
Quality & Inspection:
- PMI test to verify material grade
- Dimension controlling during fabricating and finished
- Visual and surface 100% examination before shipment
- Packed in carton box firstly, then in wooden case
- Third party inspection available.
| General Specifications of Sanitary Sampling Valve |
| Max. Pressure | 0~6 bar (600Kpa) |
| Continuous Working Temperature | -10°C ~ +121°C(EPDM) |
| Sterilization Temperature | 150°C (Max 20min) |
| Internal Surface Finish | R0.8m |
| External Surface Finish | R1.6m |
| Connection Standards | DIN, SMS, 3A, ISO |
| Connection Methods | Welding, Clamp, Threading |
| Material |
| Product Wetted | 304 (1.4301) or 316L (1.4404) |
| Other Steel Parts | 304 (1.4301) |
| EN 10204 3.1B certificate is available on request. |
| Membrane | MVQ EPDM |
| Options | FPM, Silicone, NBR |
| All seal materials comply with FDA 177.2600. |
